TCP Connection Establishment

Last Updated : 9 Jul, 2026

TCP (Transmission Control Protocol) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked data delivery between devices.

  • Uses a three-way handshake to initiate communication.
  • Assigns sequence numbers to maintain data order.
  • Detects transmission errors using a checksum.
  • Controls data flow using the sliding window mechanism.

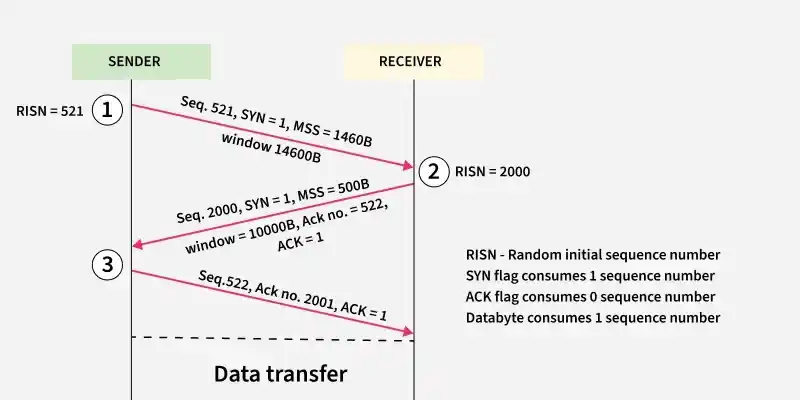

file

TCP Connection Establishment

TCP establishes a connection using a three-way handshake, where both sender and receiver synchronize sequence numbers and exchange communication parameters before data transfer begins.

Step 1 – SYN (Client -> Server)

The sender initiates the connection by sending a SYN segment.

  • Sequence Number (Seq = 521): Random Initial Sequence Number (ISN) generated by sender.
  • SYN = 1: Requests synchronization of sequence numbers.
  • Maximum Segment Size (MSS = 1460 bytes): Declares the maximum data size it can receive without fragmentation (stored in TCP Options field).
  • Window Size (14600 bytes): Advertises its receiving buffer capacity.

Step 2 – SYN + ACK (Server -> Client)

The receiver responds with a SYN-ACK segment, since TCP is full-duplex and both sides must synchronize.

  • Sequence Number (Seq = 2000): Receiver’s random ISN.
  • SYN = 1: Requests synchronization from sender.
  • ACK = 1: Acknowledgment field is valid.
  • Acknowledgment Number (Ack = 522): Acknowledges sender’s Seq 521 (SYN consumes one sequence number).
  • MSS = 500 bytes: Receiver’s maximum acceptable segment size.
  • Window Size (10000 bytes): Receiver’s buffer capacity.

Since MSS(receiver) < MSS(sender), both agree on the smaller MSS (500 bytes) to avoid fragmentation.

  • Receiver sending window = 14600 / 500 = 29 segments
  • Sender sending window = 10000 / 500 = 20 segments

Step 3 – ACK (Client ->Server)

The sender sends the final acknowledgment to complete synchronization.

  • Sequence Number (Seq = 522): Next sequence number after SYN (521 + 1).
  • Acknowledgment Number (Ack = 2001): Acknowledges receiver’s Seq 2000 (SYN consumes one sequence number).
  • ACK = 1: Confirms acknowledgment field is valid.

After this third segment, the connection enters the ESTABLISHED state.

Because three segments are exchanged (SYN -> SYN+ACK -> ACK), this process is called the Three-Way Handshake.

CP Flags Used

TCP uses specific control flags in the header to manage connection setup and termination.

  • SYN (Synchronize): Initiates a new connection and synchronizes initial sequence numbers.
  • ACK (Acknowledge): Confirms receipt of a segment and validates the acknowledgment number.
  • RST (Reset): Immediately terminates a connection due to errors or invalid requests.
  • FIN (Finish): Gracefully closes an established connection after data transfer is complete.

Common Issues

Certain problems may affect the handshake process and delay or prevent connection setup.

  • SYN Flood Attack: Large number of incomplete SYN requests exhaust server resources.
  • Connection Timeout: Handshake fails if a response is not received within a specified time.
  • Packet Loss: Lost SYN or ACK segments require retransmission, increasing delay.

Methods to Optimize TCP Connection

Performance of connection setup can be improved using optimization techniques.

  • TCP Fast Open (TFO): Allows data transmission during the initial SYN, reducing handshake latency.
  • Keep-Alive Mechanism: Maintains active connections to avoid repeated handshakes.
  • Load Balancing: Distributes incoming connections across multiple servers for efficient handling.
